• Glass Cover: IK08–IK10 impact resistance certified according to IEC 62262. Crystal-clear tempered glass, thickness depending on model and application. Conforms to RoHS Directive 2011/65/EU and (EU) 2015/863.
• IP Rating: IP66 or IP67 rated as per IEC 60598 and UL STD 1598. Suitable for outdoor use and wet locations. Tested against water ingress and dust exposure.
• Material: Fixture body made from corrosion-resistant aluminum or stainless steel (AISI 304 or 316L), selected based on application requirements.
• Surface Protection: Aluminum surfaces protected through anodization and finished with Qualicoat Seaside Class powder coating. Tested for salt spray, UV exposure, corrosion resistance, and mechanical durability. Complies with ISO 9227 and EN 12206-1.
• Installation: Designed for architectural integration through recessed, surface, or elevated mounting. Suitable for installation in concrete, gravel, soil, or tile. Drive-over rated for static loads depending on model.

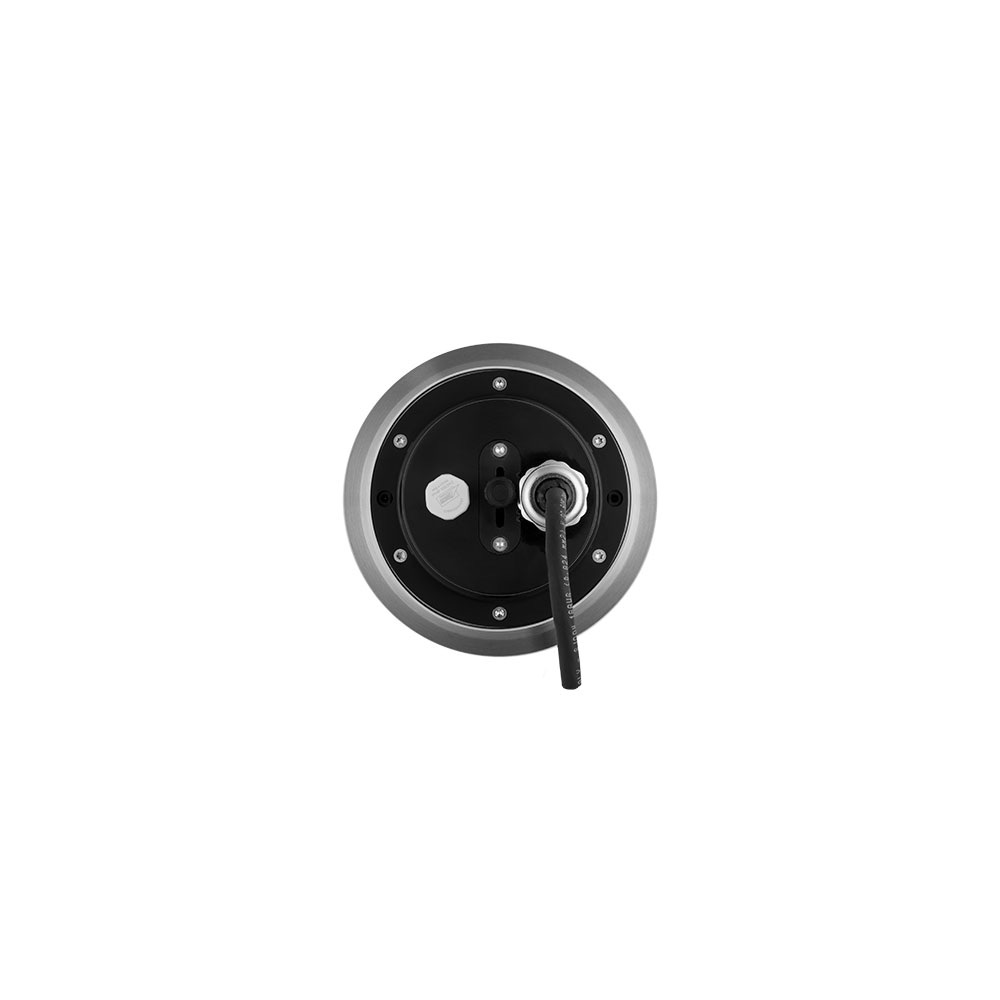

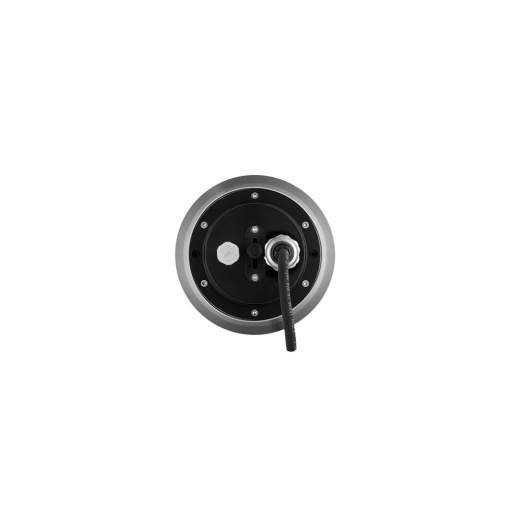

• Cable: Supplied with UV-, oil-, and water-resistant cable. Outer jacket made from durable elastomer, suitable for wet installations. Standard cable lengths range from 0.3 m to 20 m, depending on configuration.
• Thermal and Electrical Management: Includes integrated thermal protection for LED longevity. Supports multiple control protocols including ON/OFF, 0–10V, DALI, and DMX. Drivers ordered separately based on system design.
• Environment and Material Compatibility: Resistant to environmental stress, including marine and chlorinated conditions (depending on material selection). Designed for long-term performance in demanding outdoor settings.
• Sustainability and Maintenance: Made from recyclable materials, with replaceable LED modules and serviceable parts. Designed for high repairability and extended lifecycle.
• Compliance: Conforms to global standards including UL 1598, IEC 60598, RoHS Directive 2011/65/EU and (EU) 2015/863. Tested to ISO 9227, EN 62444:2013, and related mechanical and environmental standards.
Electrical Details
- LED Lifetime: LED Lifetime TM-21 @ 85°C L90(9K) = 60,500 hours
- Operating Temperature: -20°C (-28°F) to +50°C (122°F), as per IEC 60598-2-23
- LED CRI: >85
- MacAdam Steps: 2-Step MacAdam
- Electrical Insulation Class: III
Sustainability
- Recyclability: 87% recyclable
Controls
- DMX (with compatible LED power supply)
- DALI (with compatible LED power supply)
- 0-10V (with compatible LED power supply)
- Mains (with compatible LED power supply)
Approvals, Standards and Compliance
- EN 60598-2-3 (Outdoor Luminaires)
- IEC 62031 (LED modules for general lighting)
- EN 62471 (Photobiological safety of lamps)
- CE Marking (European Union compliance for safety and environmental requirements)
- RoHS (Restriction of Hazardous Substances)
- IP66/IK10 (Ingress Protection and Impact Resistance)
- ISO 9001 (Quality Management Systems)
- ETL
